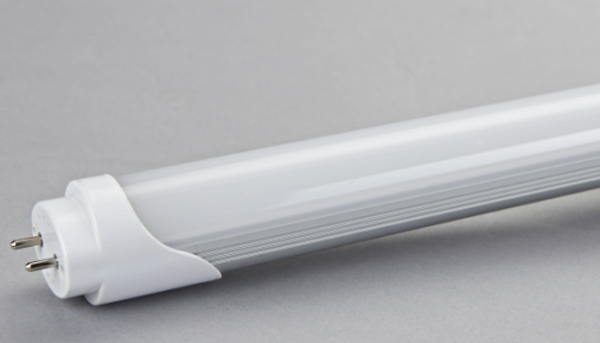

LED荧光灯fluorescent lamp
商http://www.sinled.com 品技术参数product's technical parameters
●输入电压input voltage:85-265V AC、50-60Hz
●直径diameter:T5、T8(optional)
●功率power:7W、10W、15W、18W、20W(optional)
●外型尺度overall dimension:600mm/900mm/1200mm(可选optional)
●光通量luminous flux:200Lm-2800Lm(可选optional)
●PC罩pc cover:条纹、乳白、通明(多种类型可选)Stripe, milky white, transparent (multiple types optional)
●LED数量number:96~288PCS 3528
●LED标准:高亮度Specification: high brightnessSMD/3528;3.0-3.4V、20mA
●LED单芯片亮度Single chipbrightness:≥6 Lm
●功率因数Power factor(PF):≥0.95
●LED光通量(Ø) luminous flux:≥85Lm/W
●有关色温(CCT)correlated colour temperature:纯白pure white:5000~5500K
暖色warm color:3000~3500K
冷白cool white:6000~6500K
●显色指数(CRI)Color Rendering Index:纯白pure white Ra≥70、暖色warm color Ra≥60
●平均光束角averageBeam Angle:120度120 degree
●作业温度working temperature:-5-45度degree
●作业湿度working humidity:10-70%RH
●运用寿数useful time:2000~50000Hrs(与运用环境有关)(and using environment relevant)
商品特色Product features
1、 功率小、低压安全、节能环保; Power is small, low-voltage safety, energy conservation and environmental protection;
1、2、散热性好,寿数更长:纯铝的散热器,敏捷传导光源热能,有用延伸光源运用寿数;Cooling sex good, longer life: pure aluminum radiator, rapid transmission light source heat source, prolong service life;
1、a、选用贴片式LED作为光源,比插件LED寿数更长
1、b、铝基板作为LED散热PCB,比FR4原料PCB散热好数倍。
1、c、高导热系数铝外壳作为散热器,比PC外壳导热好数倍
1、3、抗氧化:铝化学功能安稳,即便是高温下也很难氧化,更不容易疏松坠落,变形歪曲;
1、4、防眩:灯具配上优质防眩灯罩发明杰出的光环境;
1、5、装置方法:人性化结构设计,装置轻松简便。
1、6、节能:
1、a、比传统日光灯节能50%,比白炽灯节能90%;
1、b、18W LED日光灯相当于40W传统日光灯火通量,相当于150W白炽灯火通量。
1、c、一样光通量的条件下,LED有用照度是传统日光灯的一倍。(缘由:LED为单方向发光,传统日光灯为多方向发光)
a、LED by patch type As the sources,than Plugin LED Longer life
b、Aluminum plate as LED cooling PCB,than FR4 material PCB Heat dissipation good many times.
c、High thermal conductivityAluminum shell as a radiator,Than PC shell Thermal good several times
3、antioxidation:Aluminum chemical stable performance,Even high temperatures also difficult to oxidation
,Less easy to loose drop,distorted;
4、Anti-glare:Lamps and lanterns configuration in high quality Anti-glareLamp ShadeTo create the good light environment;
5、Installation: humanization structure design, installation easy and convenient.6、energy-saving:
a、Energy than traditional fluorescent lamp 50%,Energy than incandescent bulbs 90%;
b、18W LED fluorescent lamp is equivalent to 40 w traditional fluorescent lamp luminous flux,Equivalent to150W incandescent lampluminous flux。
c、The same luminous flux conditions,LED effective illuminationisTraditional fluorescent lamp one times。(reason: LED to a single direction glow,Traditional fluorescent lamp which is direction shine)7、环保与安全:Environmental protection and safety
运用铝合金与PC塑料组件,不含汞等有毒物质,可回收利用率98.5%以上。对环境不会形成损害。
Use plastic components, aluminum alloy and PC,Contains no mercury and other toxic substances,Can recycling 98.5% above.Without any harm to the environment.
8、内置电源:Built-in power
选用阻隔电源计划,安全性更高。Using isolated power solutions,Safety is higher.
9、个性化挑选:Personalizedoptions
a、透光罩可选:通明条纹(透光率高达90%)或扩光罩(光线柔软,不扎眼、透光率高达80%);
Pervious to light cover optional:Transparent stripe (euphotic rate as high as 90%) Or enlarge mask (the light is downy, not dazzling, euphotic rate reaches as high as 80%);
b、色温可选:暖白、天然白、冷白color temperatureoptional:Warm white, natural white, cold white
商品应用Product application
•彻底代替传统日光灯管;Completely replace Traditional fluorescent tubes
•办公楼、商场、超市、校园、医院、酒店、停车场、城市地下通道、工厂车间、市政工程、家庭等各个照明范畴。Office buildings, shopping mall, supermarket, school, hospital, hotel, parking lot, urban underground passage, factory workshop, municipal engineering, family and other various lighting field.
